NUA Ti-PINION Type B

FROM € 2400

Welcome to our bike builder! Here you can see the components that we offer for this Nua model, with information and a photo by clicking on the INFO icon to the right of each component. Select the components you prefer and at the end you will see the final price of your configuration, and some additional information about taxes, shipping and delivery time. Then you can fill in your personal information and leave us a comment if you wish. Finally, by clicking the big SEND button at the end, a PDF will be generated and sent to your email. If you are really interested in continuing with the purchase process, you just have to reply to that email and we will contact you to inform you about the next steps. We will be happy to answer any questions at contact@nuabikes.com. The entire Nua bikes team wishes you to enjoy the process of configuring your future Nua!

FRAME

Titanium Gr.9 Ti-3Al-2,5V, Tire clearance 76mm-584 (27,5" PLUS) and 61mm-622 (29" 2,4") W/ Belt port // Sliding dropouts with Thru Axle 142x12mm and Post Mount brake mounts // 31,6mm seatpost // Internal cable routing for rear brake (top tube), rear light (top tube), Pinion shifter cables (down tube) and dropper seatpost (down tube and seat tube) // Oversized TR ID44mm headtube // Mounting holes for mudguard, rear rack, 3 water cages and 3-Pack on seat stays // NuaBikes logo engraved on the head tube // Hand brushed finish

FORK

Choose this option if you do not want your frame kit to come with a fork.

+600 €

Segmented // Titanium Gr.9 TI-3Al-2,5V Oversized tubing // Tire clearance 76mm-584 (27,5" PLUS) and 61mm-622 (29" 2,4") // Tapered 1-1/8" to 1-1/2" steerer // Disc brake PostMount 180mm // Thru Axle dropouts 100x12mm // Mounting holes for mudguards and 3-Pack on each blade // Internal cable routing for brake housing (left blade) and dynamo hub wire (right blade)

HEADSET

Choose this option if you do not want your frame set to come with a headset.

+190 €

Legendary quality and durability, the only headset with a lifetime warranty! Made in the USA, a tapered headset with a semi-integrated upper part and an external lower part, with stainless steel angular ball bearings in CNC machined aluminium caps. BLACK

+200 €

Legendary quality and durability, the only headset with a lifetime warranty! Made in the USA, a tapered headset with a semi-integrated upper part and an external lower part, with stainless steel angular ball bearings in CNC machined aluminium caps. RED

+80 €

A top quality, ‘worry free’ headset with a semi-integrated upper part and an external lower part, for head tubes with a 44mm internal diameter. German made, with stainless steel angular ball bearings in CNC machined aluminium caps (Only Black)

GEARING

Choose this option if you do not want your frameset to come with a gearing option

+790 €

High-end sports car transmission technology, made in Germany. Being centrally mounted, this gearbox has the advantage of better weight distribution than an IGH, meaning improved manoeuvrability. With a super-light magnesium casing. Its 600% range is perfect for touring, as well as day-to-day riding in any terrain.

+1260 €

High-end sports car transmission technology, made in Germany. Being centrally mounted, this gearbox has the advantage of better weight distribution than an Internal gear hub, meaning improved maneuverability for your bicycle. With a super-light machined alloy casing. It's impressive 636% range is the higher you will find on any gear system on this planet.

SHIFTER

Select this option if you don't need a shifter from us.

+160 €

This especial rotary shifter for Pinion is designed to work on the dropbar tops. Rotary shifters can shift lots of gears at the same time and are simple, worry free, robust and needs no maintenance or adjustment.

+60 €

The standard Pinion rotary shifter for flat bars, designed in collaboration with Ergon, is super ergonomic and works flawlessly and as all rotaries, can shift all the gears you need at the same time.

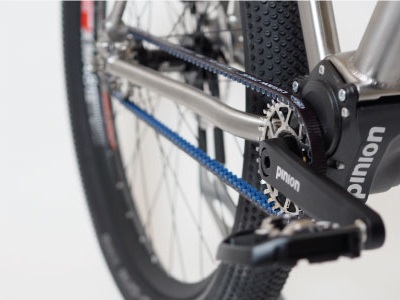

TRANSMISSION

Choose this option if you do not want your framekit to come with a belt and sprockets.

+295 €

Extremely durable, this drive system performs in the harshest conditions. Like all Gates drives it’s clean, silent, and virtually maintenance-free. Also, it doesn’t rust, which is a huge advantage in icy (and therefore salty) or wet climates. We use the stainless steel sprockets version for the maximum durability, and an all black belt.

CRANKS

Choose this option if you don't need cranks for your frameset

+90 €

Rugged quality forged aluminium cranks which come standard with all Pinion gearboxes.

+180 €

High-end CNC cranks, machined from 7075 alloy billets. Compatible with all Pinion gearboxes.

PEDALS

If you want to use your own pedals, choose this option.

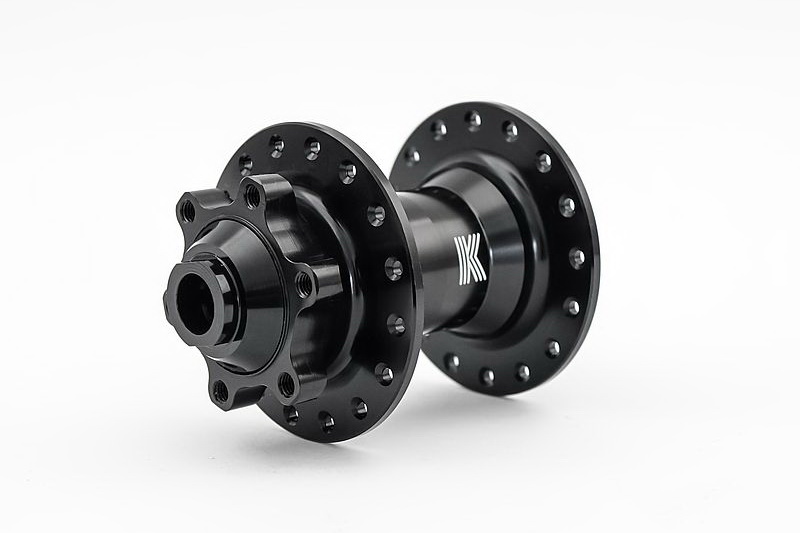

FRONT HUB

Choose this option if you choose the below "integrated lighting system" option, where a SON 28 dynamo hub is included.

+90 €

What to say about 350 DT Swiss hubs? These hubs are considered a quality standard for many people, including us. It is based on the proven 240 hubs and only slightly heavier. That's why it is just the right hub for cyclists, who are looking for a reliable hub with high performance.

REAR HUB

Choose this option if you do not want your frame kit to come with a rear hub.

+240 €

This new generation hub was developed in cooperation with the hub and wheel specialists from DT Swiss®. The H3R is a single-speed hub optimized for Pinion gearboxes and is built around the proven RATCHET® freewheel system. Due to the HYBRID technology it is specifically designed for high-load applications. It is equipped with the new HYBRID steel freehub body and feature a reinforced axle and hub body. It stand for proven DT Swiss technology and straightforward functionality with low care and maintenance required.

STEM

Choose this option if you do not want your frame kit to come with a stem.

+150 €

A supremely lightweight and durable option to match your titanium frame, with a slim and minimalist design.

SEATPOST

Choose this option if you do not want your frame kit to come with a seatpost.

+150 €

If you’d like to match your Nua frame with an elegant and minimalist seatpost which gives a more comfortable ride thanks to the flexibility of titanium, choose this option. Laser engraved Nua logo.

SEATPOST CLAMP

Choose this option if you do not want your frame set to come with a seatpost clamp

+30 €

Exquisite minimal and super light collar from Tune in the Black Forest, Germany. BLACK

+30 €

Exquisite minimal and super light collar from Tune in the Black Forest, Germany. RED

+10 €

The SC2 saddle clamp from 3min19sec has two cross nuts. They make sure that the clamping bolt is always straight. The bolt is also easier to tighten and the tension is evenly distributed over the entire clamping area

+45 €

Our Titanium seatpost clamp will match perfectly your titanium frame and will last forever.

HANDLEBAR

Choose this option if you do not want your frame kit to come with a handlebar.

+170 €

If you’d like to match your Nua frame with an elegant and minimalist handlebar which gives an extremely comfortable ride thanks to the flexibility of titanium, choose this option. 720mm long with a backsweep of 6°, and with 20mm of rise for a more comfortable riding position or to give that special touch to your bike.

+270 €

We affectionately call our adventure/bikepacking bar Toro Loco (Crazy Bull) for obvious reasons. It's 25º back sweep make it super comfortable and the horns give you and extra hand position very similar to the "hoods" position found on a drop (road/gravel) bar, making it also perfect for gravel and commuting.

+150 €

If you’d like to match your Nua frame with an elegant and minimalist handlebar which gives an extremely comfortable ride thanks to the flexibility of titanium, choose this option. Weighing only 209g, it’s 620mm long with a sweepback of 6°.

+50 €

A cutting-edge "dirt drop bar" developed for gravel and dirt touring use. Thanks to its open and wider profile, it allows for better control while riding off-road. Made out of Aluminum 7075-T6, it only weighs 330g.

BOTTLE CAGE

Choose this option if you'd prefer not to have a bottle cage.

+40 €

A super-lightweight titanium bottle cage to match your frame. Easily adjusted for the perfect bottle fit.

+80 €

Two super-lightweight titanium bottle cages to match your frame. Easily adjusted for the perfect bottle fit. One for your downtube and one for your seattube.

BELL

Choose this option if you'd prefer not to add a bell to your bike.

+25 €

Based in Japan, Crane is recognized as creating beautiful and nice sounding bicycle bells. The E-NE is their smallest and most minimalist model, in matte black.

ACCESSORIES

0 €

20 €

Pinion ask for an oil change every 10.000 km. And maybe we are a bit old school, but we think it's a good idea to have a first oil change after the running-in period (1000/2000 km). Either way, by adding this Genuine Pinion Oil Change Kit, you'll be prepared when the time comes.

12 €

If you don't have tools, add to your order this Pedro's Star Hex key #4, #5 and #6, good quality and enough tip sizes to build-up and adjust your Nua

30 €

If you like to do the mechanical maintenance on your Nua yourself, you will need this tool to remove the Gates front sprocket.

15 €

With the Gates Universal Transmissions Belt Care you keep your Gates Carbon Drive running smoothly. The spray oil is used for sealing and preservation. After application, it forms a durable layer to which water beads off and dirt does not adhere too easily. 150ml.

12 €

If you chose a Berthoud leather saddle, you might want to add a wax can. To maintain leather softness and aspect, spread once or twice a year Berthoud original wax under the leather of the saddle. You can apply it more often in the first few months to speed up the break-in process that a leather saddle needs to become extremely comfortable.

10 €

Few things can be more practical than these straps. The fastest and safest way to attach a bag or any other package to a bike, they have become an essential element in the world of bikepacking. For us, Voile straps are the best straps on the world and that's why we have partnered with them ordering a handful of them with our logo, and in that beautiful sand color, matching very well the theme of our adventure bikes. Length: 25", Tan color, Printed Nua logo. Price per 1 unit. Let us know how many units you want to order in the comments box

30 €

Titanium cup with 300ml, capacity, perfect for your outdoors (and indoor!) beverage.

40 €

Titanium mug with convenient folding handles and lid. Perfect for preparing your favorite hot drink or food on your bikepacking outings.

10 €

No more plastic straws in the trash. Ours titanium one will last you forever. Maybe a good gift for that daughter who likes to drink everything through a straw?

40 €

This complete titanium set will withstand anything. Ultralight and unfazed by any dirt or weather conditions, it will be your ideal companion out there.

FINAL PRICE: 2400.00 € + Taxes

TAXES

For bicycles shipped within the EU, we will add the VAT of the country of destination.

For bicycles shipped outside the EU, taxes or import duties will be charged by customs in the country of destination.

SHIPPING RATES

EUROPE: Bicycles 190€ / Framesets 110€

UK: Bicycles 260€ / Framesets 140€

SWITZERLAND: Bicycles 260€ / Framesets 140€

USA: Bicycles 440€ / Framesets 240€

AUSTRALIA: Bicycles 480€ / Framesets 270€

All prices include shipping insurance

DELIVERY TIME

18 weeks

PAYMENT

By wire transfer, 50% deposit to order, 50% balance before shipping.

Please fill in the form below with your personal data and your email address. Once done, click on "SEND" to receive a pdf file with a quote of your configuration.
